Board Manufacturing

One Key Feature is to mill boards.
This always is a new adventure but is the only way to keep the flexibility, e.g. to change VCOs, MMIC or Reference Oscillators.
Currently around 15 different Versions exists.

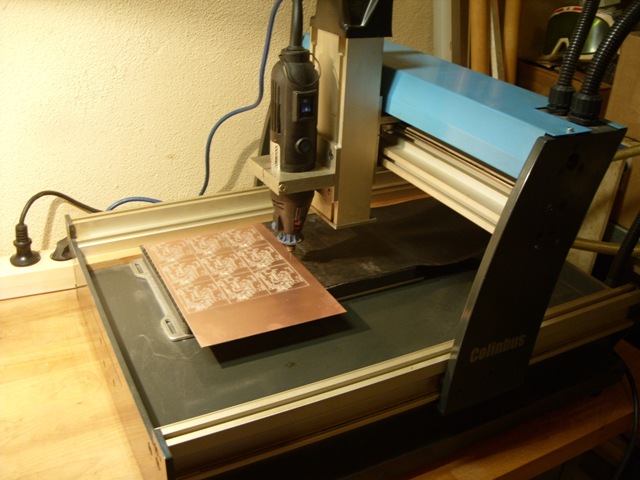

CNC Milling Machine

Messplatz

click to enlarge

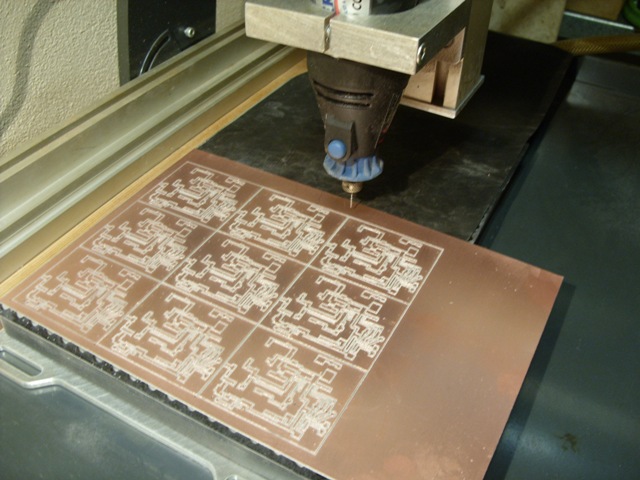

Milling the Boards

Messplatz

click to enlarge

25MHz 27MHz PLL IF 700MHz 70cm 23cm
10MHz Clock, 10MHz Buffer etc.



25 or 27MHz PLL for 10GHz LNB
Messplatz Application: Low cost TVSat LNB disciplined to 10MHz reference
Using commercial TVSat LNBs to receive signals in the 10GHz radioamateur segment is nothing new. Since new PLL based LNBs were launched to market to fit the HD needs for better stability they proved to be useful for Rx of narrow signals like CW and SSB. Size, price and sensibility of this devices are unbeatable. But one problem is that they use a simple quartz crystal as internal PLL reference,so the long term stability is poor. Temperature variations when operating outdoor make it drift slowly and constantly. One never knows exactly which is the frequency tuned in a received signal
Finally we can say that this problem has an easy and economic fix.

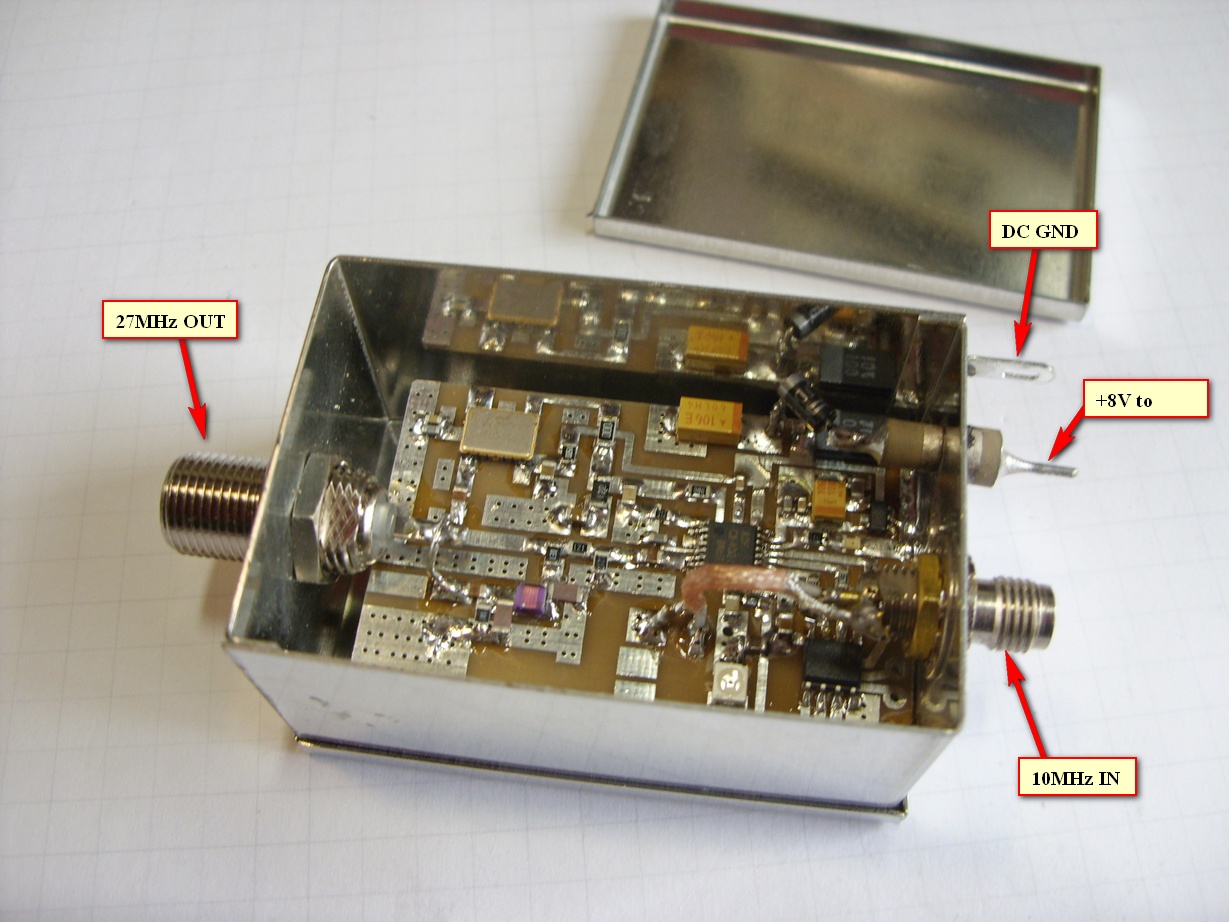

Solution is a 27MHz PLL disciplined with a 10MHz reference
Stability and precision will be as good as the 10Mhz Reference used.
read more
Same PLL also available for 40MHz - Pluto

23MHz to 27MHz PLLs for IF 70cm and 23cm
Messplatz

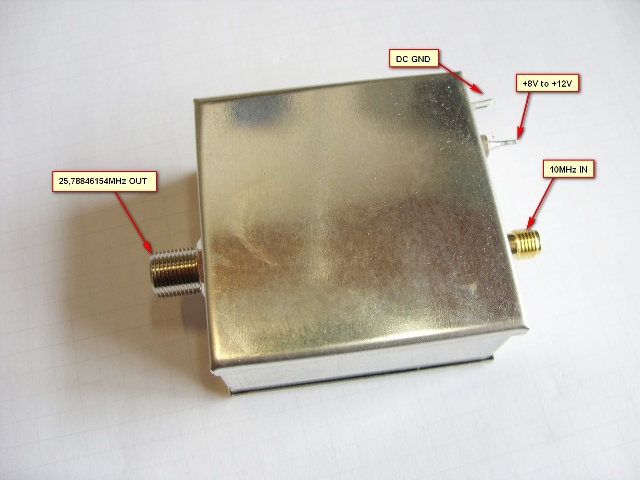

For example 25,78846154MHz for LNB Downconversion QO-100 to 432MHz
or 27,8601108MHz for LNB with 27MHz Crystal
23,5730762MHz for IF 1296,05MHz
All frequencies between 23 and 30MHz are possible,
with different assemblings, not in 1 unit !
Price for external 10MHz reference
Board: 43€ , In Box with Connectors 56€

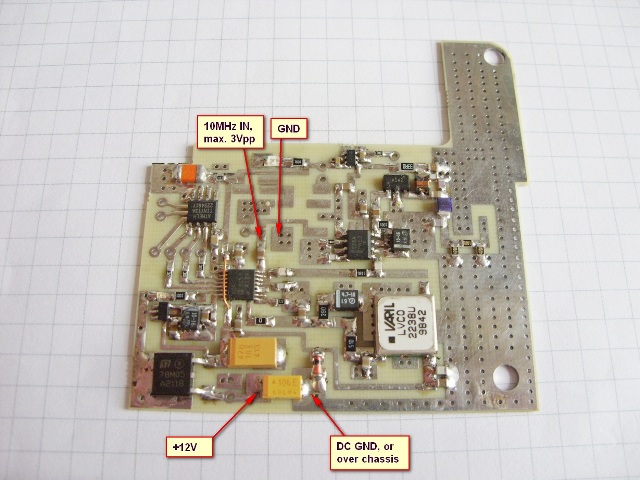

49,152MHz PLL for IC9700
Messplatz Output Power +14dBm min.
External 10MHz Reference
Optional with Internal Reference 0,25ppm
Phase Noise 120dBc/typ. @ 1Khz
If no 10MHz signal is present the output power is switched off and the IC9700 will work with the internal LO

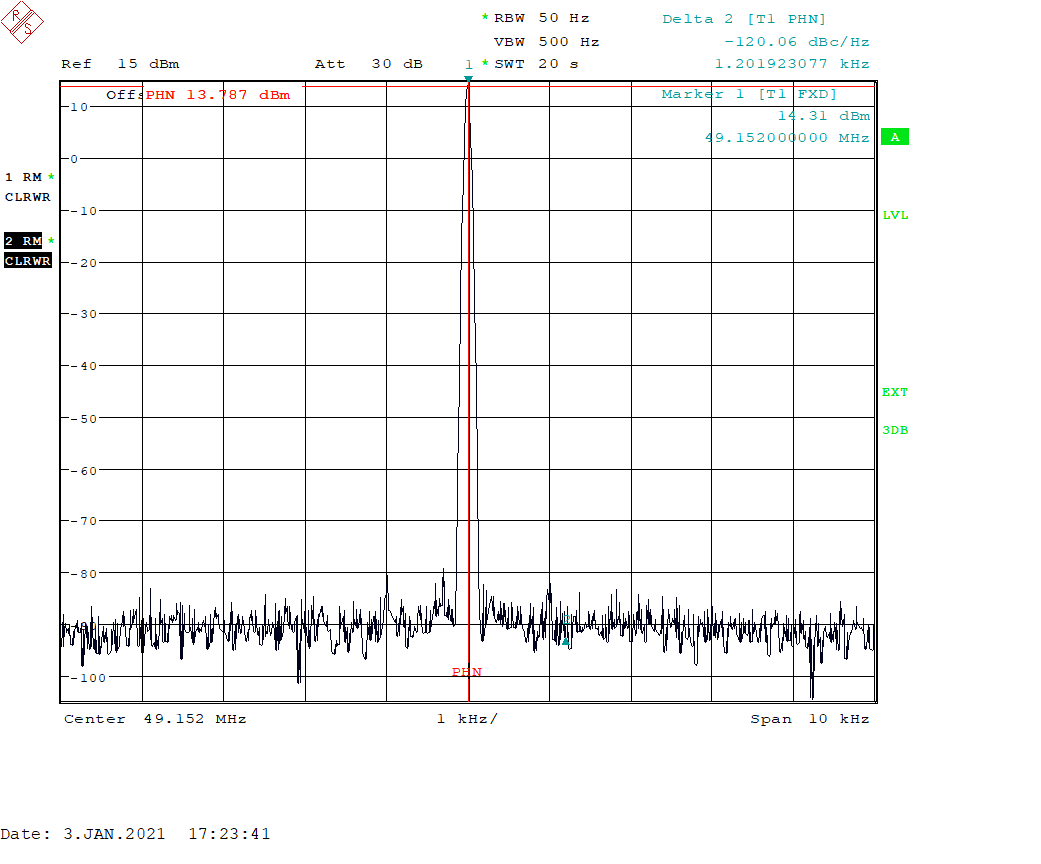

Plot see here
Supply +12V
Current 100mA
price for the Board is 47€ + shipping cost

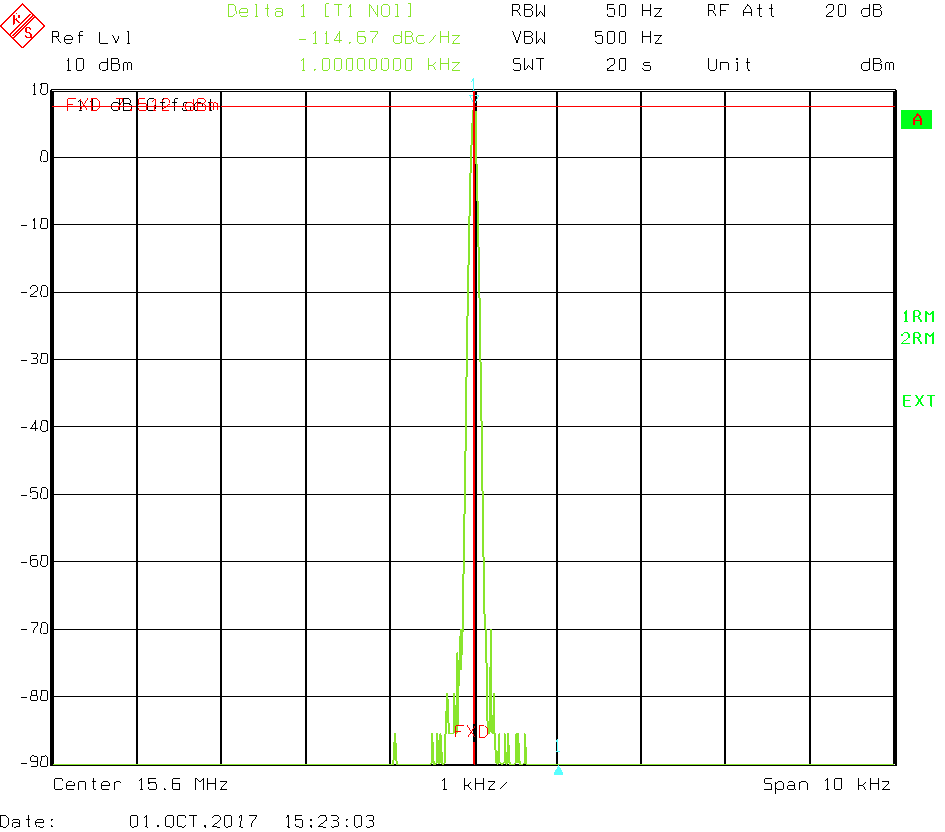

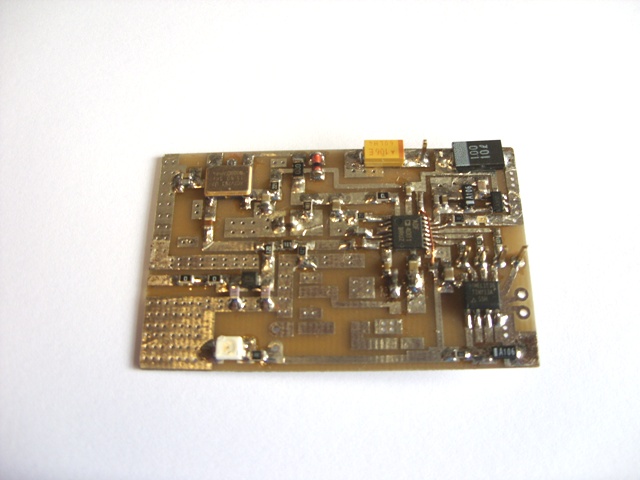

15,6MHz PLL for TS2000x
Messplatz Messplatz Output Power +7dBm ( 5mW )
External 10MHz Reference
Optional Internal Reference 0,5ppm or 0,25ppm
Phase Noise better 115dBc @ 1Khz
Phase Noise better 120dBc @ 10Khz
Plot see here
And some photos here
Supply +5V or +12V

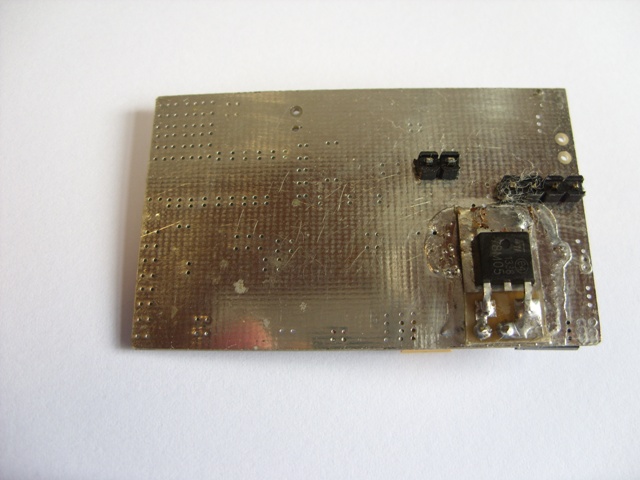

For 12V the regulator is at bottom side, see photo)
Current 20mA
Size 54x33mm
Price for the board 30€ + shipping cost
Shipping to most countries worldwide

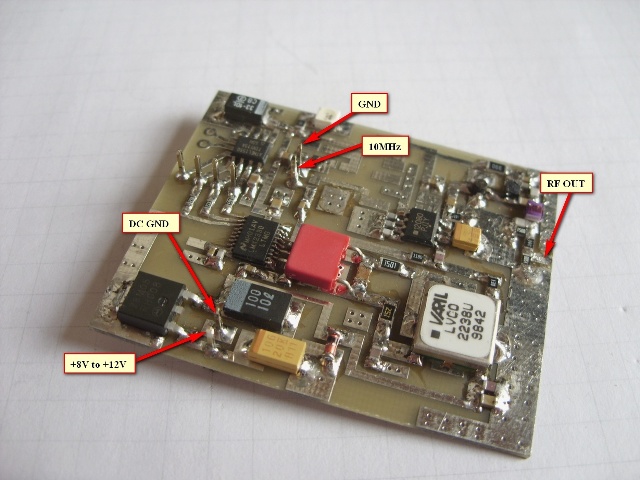

22,625MHz PLL for FT-847
Messplatz Output Power 0dBm ( 1mW )
External 10MHz Reference
Optional Internal Reference 0,5ppm or 0,25ppm
Phase Noise better 110dBc @ 1Khz
Phase Noise better 120dBc @ 10Khz
Plot see here
Supply +8V to +12V
Current 80mA
Size 54x45mm
Price for the board 35€ + shipping cost
Shipping to most countries worldwide

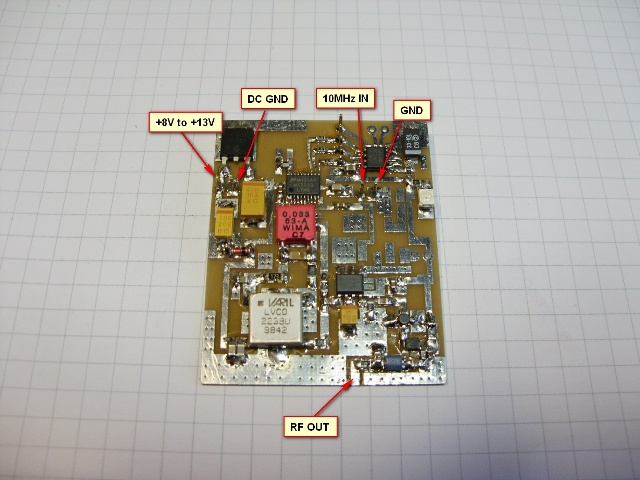

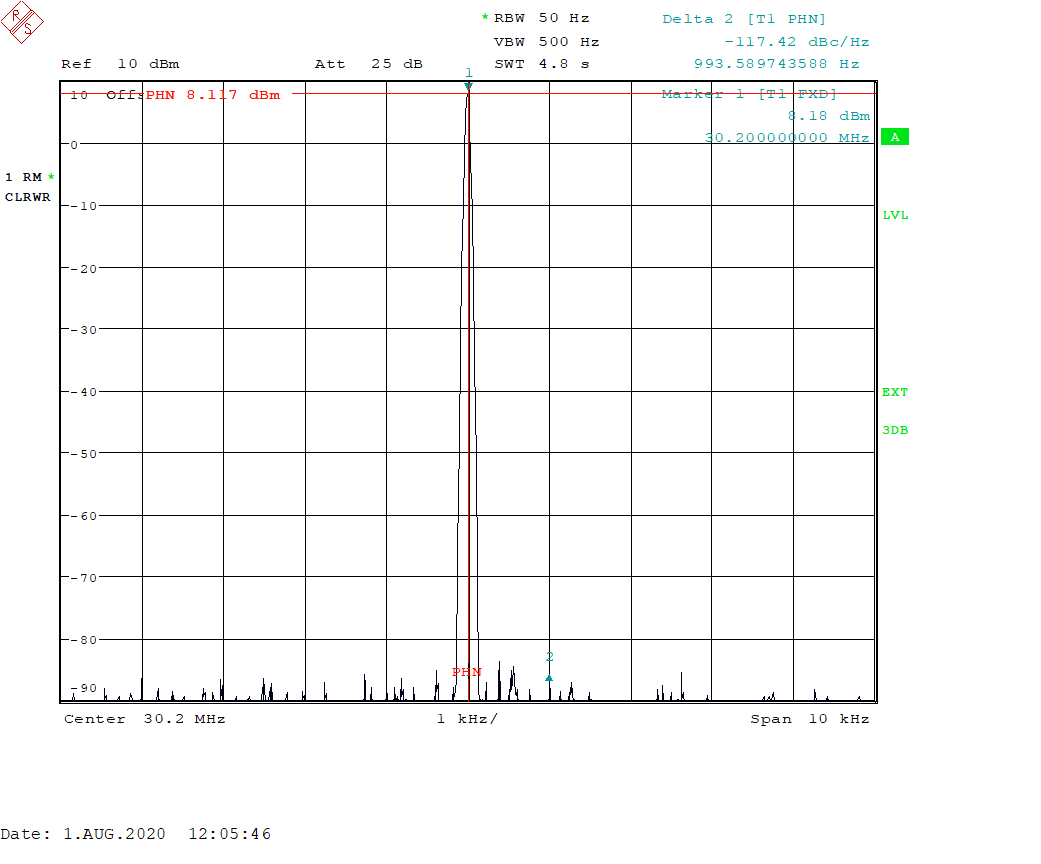

PLLs 30,2MHz IC-970 IC-910 IC275 , 30MHz IC-706 , 28,8MHz DVB-T(SDR)
Messplatz Output Power +7dBm ( 5mW )
External 10MHz Reference
Optional Internal Reference 0,5ppm or 0,25ppm
Phase Noise better 115dBc @ 1Khz
Phase Noise better 120dBc @ 10Khz
Plot see here
Supply +8V to +12V
Current 80mA
Size 54x45mm
Price for the board 36€ + shipping cost
Shipping to most countries worldwide

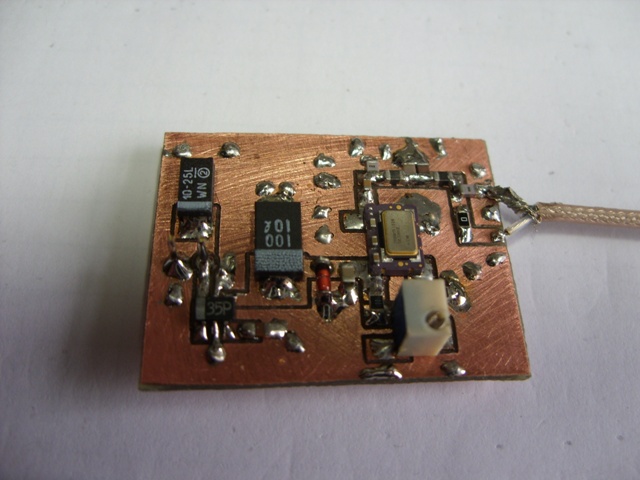

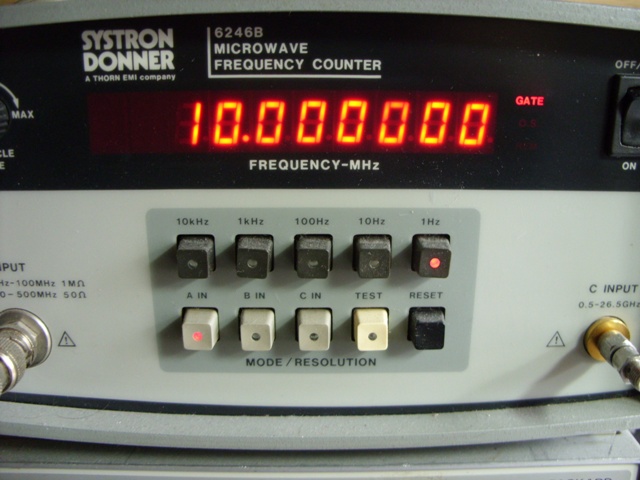

High Precision and Stable 10MHz Clock Source
Messplatz Messplatz Adjustable Center Frequency
Temperature Stability 0,25ppm -10°C to +70°C
Output 2Vpp at 1KOhm pure Sine Wave
Output Power at 50 Ohm 5mW ( +7dBm )
Supply +5V to +12V at max 10mA
Phase Noise at 1KHz 140dBc
Phase Noise at 10KHz 150dBc
Size 33x27mm
Also available in Metal Box 37x37x30mm with SMA or SMB female


High Precision and Stable 27MHz Clock Source
Messplatz For Hailsat where Phase Noise is THAT issue
Adjustable Center Frequency
Temperature Stability 0,5ppm -10°C to +70°C
Output 2Vpp at 1KOhm pure Sine Wave
Phase Noise at 1KHz 135dBc min
Phase Noise at 10KHz 145dBc min
Supply +5V to +12V at max 10mA
Size 33x27mm
Also available in Metal Box 37x37x30mm with SMA or SMB female

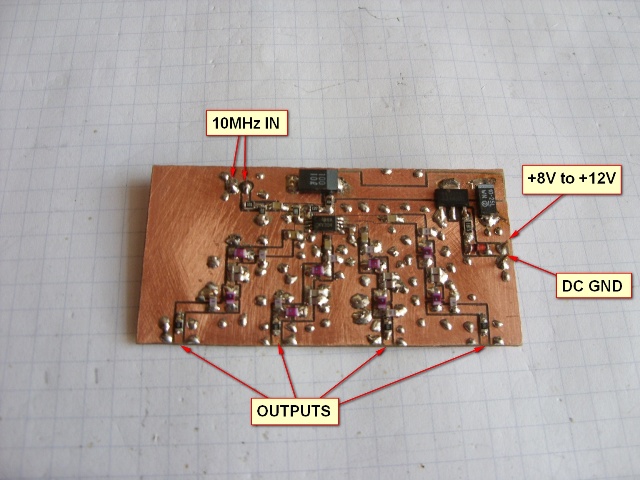

10MHz Buffer Verteiler 4 Outputs
Messplatz 10MHz FanOut Buffer Verteiler with 4 Outputs
Supply +12V (also AVAILABLE for 5 to 8V )
Current all Outputs loaded with 100R 40mA
Input 0,6Vpp to 3Vpp
All Outputs with Filter, Pure Sinus
Default with 56R in series load 2,5Vpp , 1Vpp or +7dBm at 50 Ohm
LxW 68x34mm

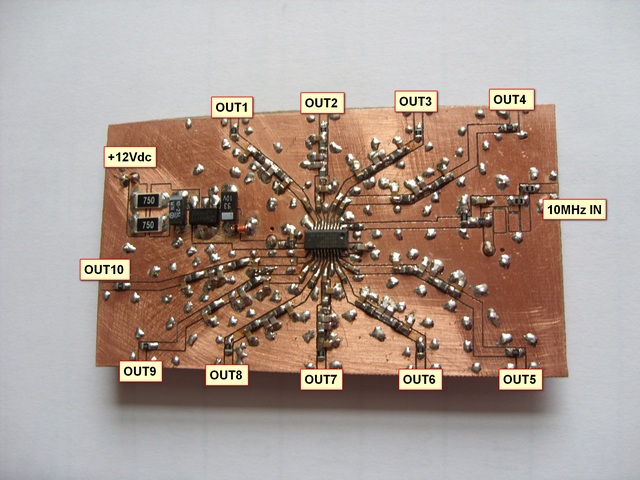

10MHz Buffer Verteiler 10 Outputs
Messplatz 10MHz FanOut Buffer Verteiler with 10 Outputs/>
Supply +12V (also AVAILABLE for 5 to 8V )
Current all Outputs loaded with 100R 125mA
Input 0,6Vpp to 3Vpp
All Outputs with Filter, Pure Sinus
Default with 56R in series load 3Vpp , also possible with 100R in series at 2,2Vpp
LxW 95x53mm

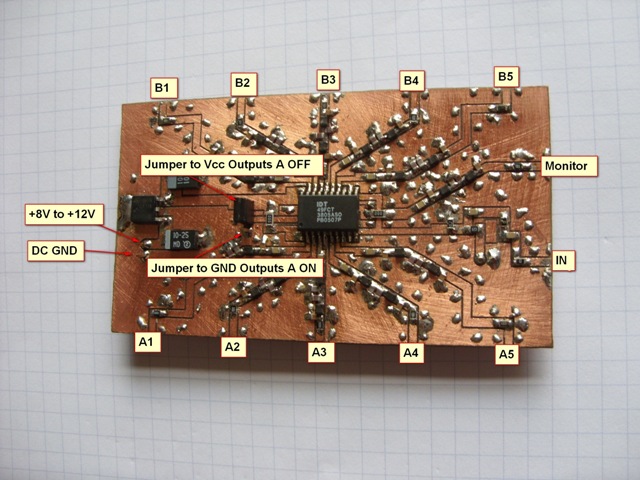

10MHz Buffer Verteiler 2x5 Outputs and Monitor
Messplatz 10MHz FanOut Buffer Verteiler with 2x5 Outputs and Monitor
Monitor can be used as Output too
Outputs "A" can be disabled by Jumper
Supply +12V (also AVAILABLE for 5 to 8V )
Current all Outputs loaded with 100R 130mA
Input 0,6Vpp to 3Vpp
All Outputs and Monitor with Filter, Pure Sinus
Default with 56R in series load 3Vpp , also possible with 100R in series at 2,2Vpp
LxW 95x53mm

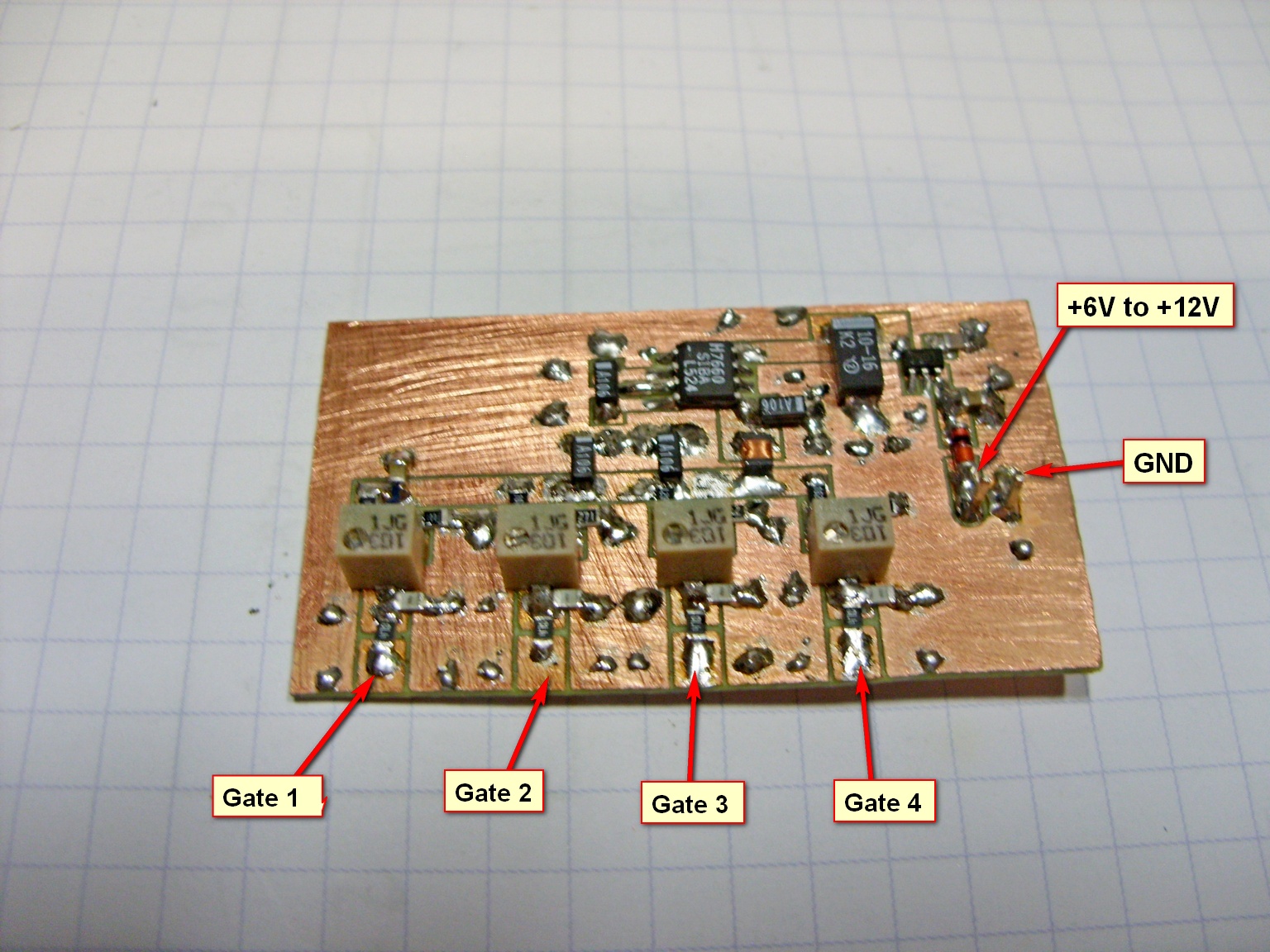

Precise adjustable negative FET Supply
Messplatz Negative supply of max. 4 Fets
11 turn SMD Potis
adjustable fom -0,2V to -4V
LxW 53x30mm
schematic

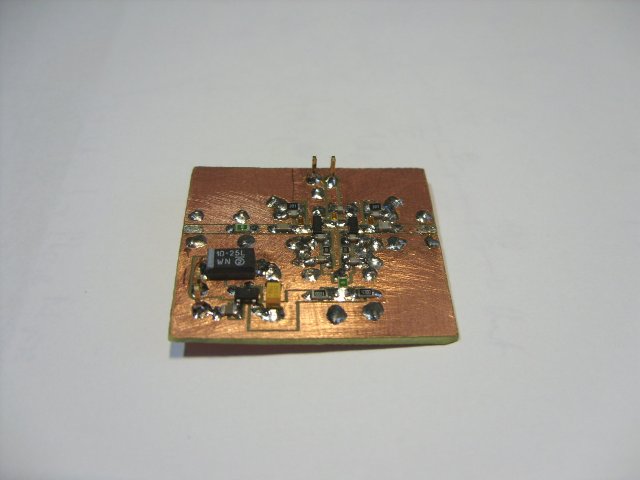

Messplatz Messplatz Messplatz Voltage Variable Attenuator for up to 3,5GHz.

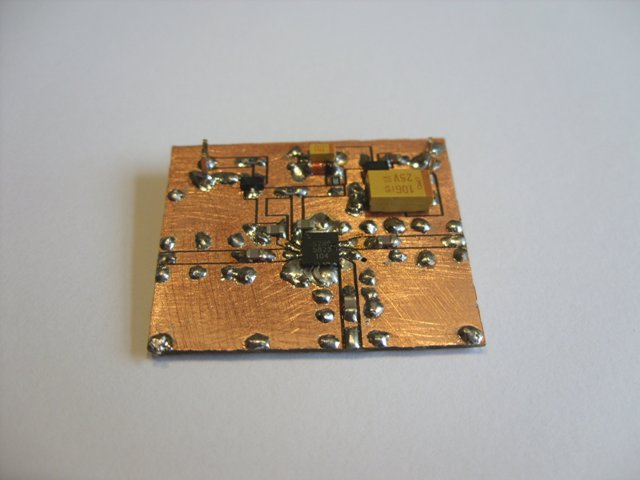

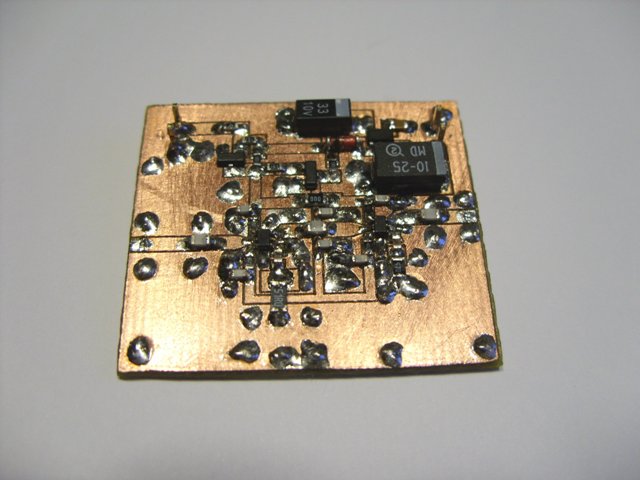

High Isolation Switches either SPST = just ON/OFF
or SPDT = RX/TX version

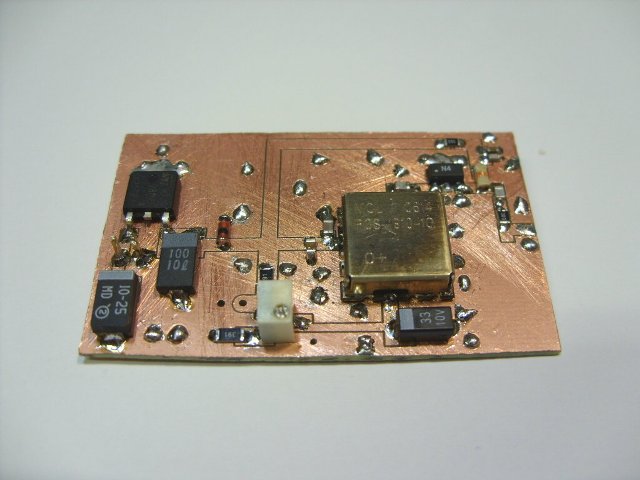

Sometimes it is desirable to have an Oscillator tunable over a specific Frequency Range. A VCO with a 11turn poti can do that job. Messplatz Messplatz

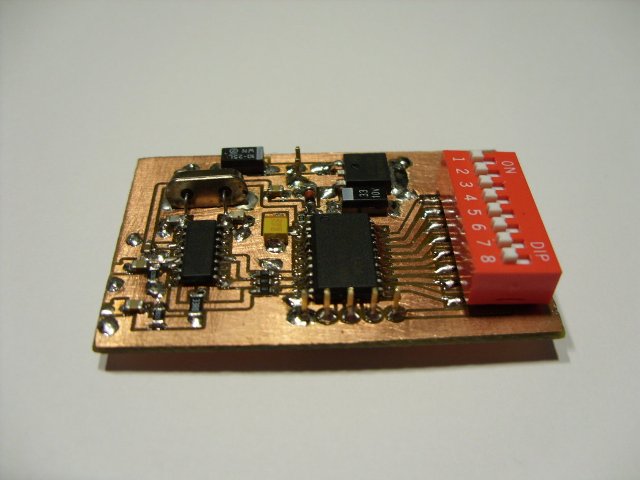

Or a switchable Crystal Oscillator from 10MHz to 73MHz in 1MHZ steps. A second output pin delivers F/2, means from 10 to 36,5Mhz in 500KHz. Available also with 10MHz TCXO for improved frequency stability. Output is +13dBm Square Wave. Single Frequencies with optional Low Pass Filter and Sinus Out available too.

Click on the Photos to enlarge and close with Back Buttom !
